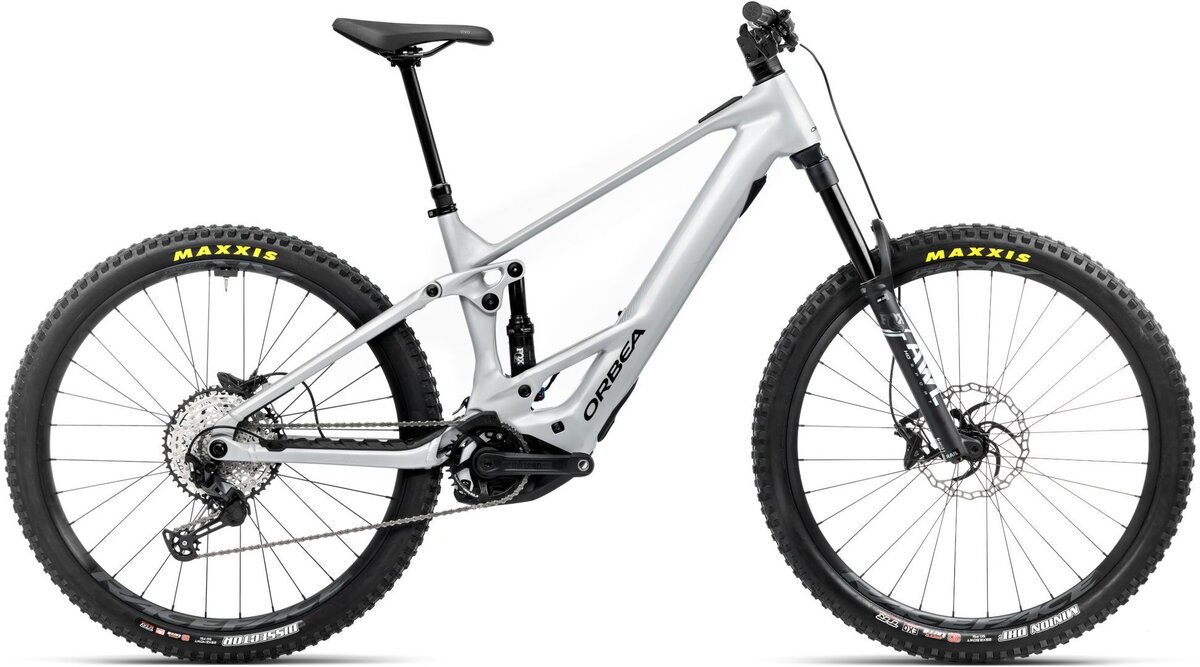

Orbea Wild ST H20

Orbea Wild ST H20
  • Color: Halo Silver Gloss
  • Color: Diamond Black - Blue Stone Matt
$5,999.99 - $8,499.00
$8,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The Yes Machine

Welcome to a world beyond power. A world where far and fast is taken for granted. Whatever question the trail poses, the answer is always yes.

Wild is a bike built without compromises. Lightweight and fully optimised, it leaves our factory ready for action with the latest Bosch motor and race-ready build kits.

Lightweight, heavy performance.
- Wild tames the wildest trails but always feels alive, energetic, and involving rather than the detached, numb ride of many e-bikes. This balance of light weight and stiffness is the base for Wild's incredible handling.

Endless power and unlimited range
- Fully powered and ready to rumble, Wild is all about maximum fun on the craziest climbs and wildest descents. The combination of the latest Bosch motors and a choice of advanced batteries offers incredible range, power, and control.

Ready for action
- The most robust builds mean Wild arrives ready for any challenge. This might be one of the lightest full-power e-bikes, but built without compromise.

Performance through simplicity
- Performance through simplicity means removing anything unnecessary and adding only what directly enhances the ride.

Heavy performance.

Developed on the toughest tracks.
- How do you take a bike as capable as Wild that bit further? Testing in the EDR with our Orbea Enduro Team took us so far. For the final push, we took Wild racing in the DH World Cup.

Sizes:
MeasurementSMLXL
Seat Tube (C-T) 415 415 435 450
Top Tube (EFF) 561 583 610 636
Head Tube 110 120 130 140
Chainstay 448 448 448 448
BB Drop 28 28 28 28
BB Height 352 352 352 352
Wheelbase 1219 1243 1273 1302
Head Angle 64.5° 64.5° 64.5° 64.5°
Seat Angle 78.4° 78.4° 78.4° 78.4°
Rake 44 44 44 44
Standover 720 720 720 720
Reach 440 460 485 509
Stack 619 628 637 645
Fork Length 565 565 565 565
Sizes:
SizeHeight
S 59.1"-68.9"
M 63.0"-72.8"
L 66.9"-76.8"
XL 70.9"-80.7"

Specs

Frame Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Fork Fox 36 Float AWL HD Sport 150 Rail 2.0 QR15x110
Rear Shock Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Minion DHF 2.50" FB 60 TPI 3C MaxxTerra Exo TR
Crankset e*thirteen Helix Core
Shifters Shimano Deore M6100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6120 Hydraulic Disc
Handlebars OC Mountain Control MC30, Rise20, Width 800
Tape/Grips OC Lock On
Stem OC Mountain Control MC20, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Selle Royal Vivo Sport Men 145 x 269mm
Motor Bosch Performance Line CX BDU3840
Battery Bosch Powertube 750Wh Horizontal BBP3775
Controller/Display Bosch System Controller BRC3100
Charger Bosch Charger 4A (110V) BPC3410

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Diamond Black - Blue Stone Matt / Small / 29-inch 08434446837616 S64203SJ
Diamond Black - Blue Stone Matt / Medium / 29-inch 08434446837647 S64205SJ 210000013570
Diamond Black - Blue Stone Matt / Large / 29-inch 08434446837678 S64207SJ
Diamond Black - Blue Stone Matt / X-Large / 29-inch 08434446837708 S64209SJ
Halo Silver Gloss / Small / 29-inch 08434446837623 S64203SK 210000013569
Halo Silver Gloss / Medium / 29-inch 08434446837654 S64205SK
Halo Silver Gloss / Large / 29-inch 08434446837685 S64207SK
Halo Silver Gloss / X-Large / 29-inch 08434446837715 S64209SK
