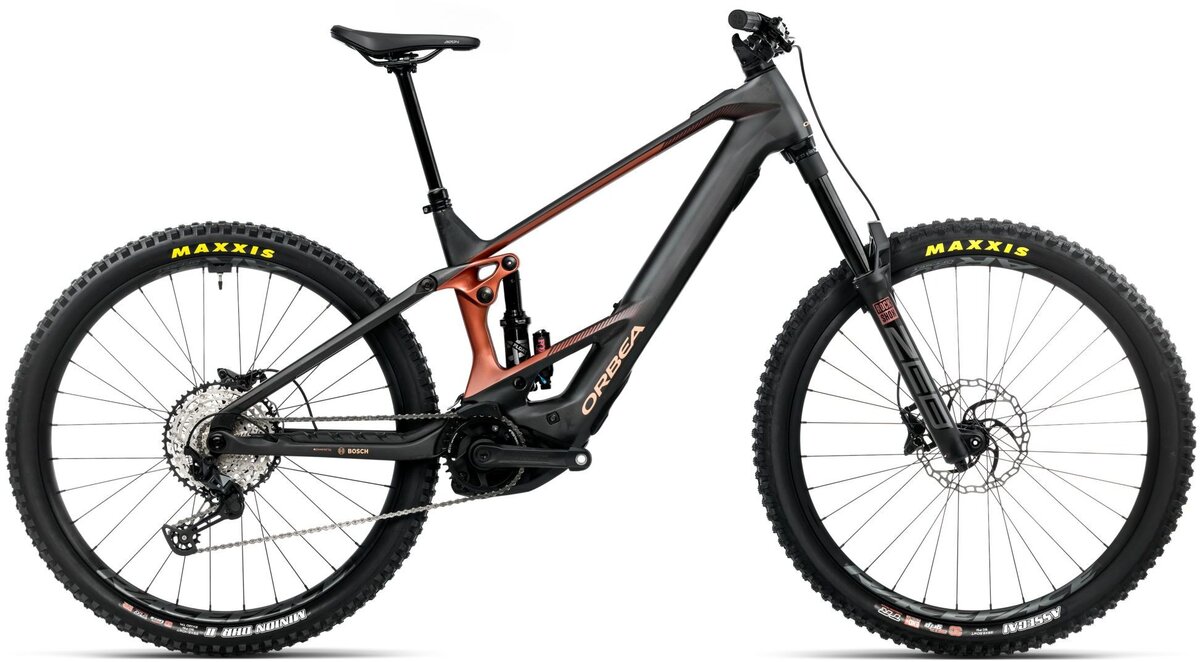

Orbea Wild M20

Orbea Wild M20
  • Color: Diamond Carbon View (Matt) - Mars Red (Gloss)
  • Color: Caramel Carbon View (Gloss) - Cream White (Matt)
$8,599.00 - $10,599.00
$10,599.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

THE YES MACHINE

Wild is a bike built without compromises. Lightweight and fully optimised, it leaves our factory ready for action with the latest Bosch motor and race-ready build kits.

Wild is a bike built without compromises. Lightweight and fully optimised, it leaves our factory ready for action with the latest Bosch motor and race-ready build kits. With 170mm of travel front and rear, and angles designed to go fast you know that no matter what the challenge, Wild is prepared to perform.

Lightweight, heavy performance.
Wild tames the wildest trails but always feels alive, energetic, and involved rather than the detached, numb ride of many e-bikes. This balance of light weight and stiffness is the base for Wild's incredible handling.

Endless power and unlimited range
Fully powered and ready to rumble, Wild is all about maximum fun on the craziest climbs and wildest descents. The combination of the latest Bosch motors and a choice of advanced batteries offers incredible range, power, and control.

Ready for action
The most robust builds mean Wild arrives ready for any challenge. This might be one of the lightest full-power e-bikes, but built without compromise.

Performance through simplicity
Performance through simplicity means removing anything unnecessary and adding only what directly enhances the ride.

Sizes:
MetricSMLXLS - MulletM - MulletL - MulletXL - Mullet
Seat Tube (C-T) 415 415 435 450 415 415 435 450
Top Tube (EFF) 563 586 612 639 561 583 610 636
Head Tube 110 120 130 140 110 120 130 140
Chainstay 448 448 448 448 448 448 448 448
BB Drop 22 22 22 22 22 22 22 22
BB Height 358 358 358 358 358 358 358 358
Wheelbase 1228 1252 1282 1311 1228 1252 1282 1311
Head Angle 63.5 63.5 63.5 63.5 63.5 63.5 63.5 63.5
Seat Angle 77.5 77.5 77.5 77.5 77.5 77.5 77.5 77.5
Rake 44 44 44 44 44 44 44 44
Standover 730 730 730 730 727 727 727 727
Reach 435 455 480 505 435 455 480 505
Stack 625 634 643 652 627 636 654 654
Fork Length 585 585 585 585 585 585 585 585
Sizes:
SizeHeight
Small 59.1"-68.9"
Medium 63.0"-72.8"
Large 66.9"-76.8"
X-Large 70.9"-80.7"

Specs

Frame Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
Fork RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific 15X110 Boost
Rear Shock Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Crankset e*thirteen Helix Core
Chainrings e*thirteen e*spec Direct Mount 34T Boost
Shifters Shimano Deore M6100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano MT420 Hydraulic Disc
Rotors Galfer Wave Rotors 203mm front / 203mm rear
Handlebars OC Mountain Control MC30, Rise20, Width 800
Tape/Grips OC Lock On
Stem OC Mountain Control MC20, 0º
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Fizik Aidon 208x145mm manganese rail
Accessories & Extras OC Computer Mount CM-05, Garmin/Sigma
Motor Bosch Performance Line CX BDU3840
Battery Bosch Powertube 750Wh Horizontal BBP3775
Controller/Display Bosch System Controller BRC3100
Charger Bosch Charger 4A (110V) BPC3410

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Caramel Carbon View (Gloss) - Cream White (Matt) / Large / 29-inch front / 27.5-inch rear 08434446836091 S64607X2 210000013567
Diamond Carbon View (Matt) - Mars Red (Gloss) / Medium / 29-inch front / 27.5-inch rear 8434446836060 S64605X1 210000013597
Diamond Carbon View (Matt) - Mars Red (Gloss) / X-Large / 29-inch front / 27.5-inch rear 08434446836107 S64609X1 210000013571
