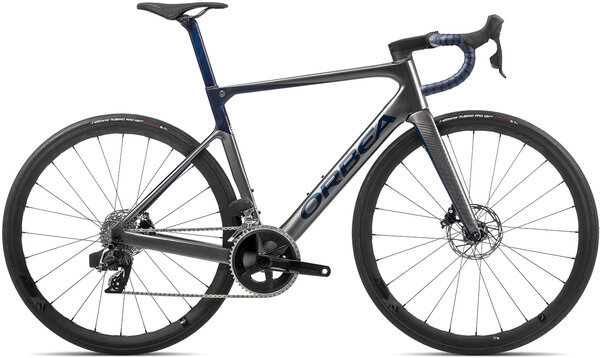

Orbea Orca M31eLTD PWR
Details
THE LIGHTEST AND MOST CAPABLE RACING BIKE
Performance, technology, and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast, and beautiful. Professional athletes, weekend warriors, Strava hunters, and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.
ICR
Internal Cable Routing is carefully routed along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
HIDDEN CLAMP
Orca's seat post clamp is smoothly integrated into the frame, decreasing the likelihood of contamination and increasing aerodynamics. Not to mention, it looks great too.
SEATPOST CLAMP
The sleek and secure clamp of the Orca seat post is a proprietary design that allows tilt adjustments to be made independently of the saddle fore-aft position.
INTEGRATION
Cables and brake hoses are routed directly inside the stem under an aero cover. A clever headset design and split stem spacers allow the cables to enter the frame while still permitting stem adjustment.
| SIZE (CM) | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| MEASUREMENTS (MM) | |||||||
| 1 - SEAT TUBE (C-T) | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| 2 - TOP TUBE (EFF) | 510.45 | 523.24 | 535.84 | 548.51 | 560.43 | 576.13 | 589.97 |
| 3 - HEAD TUBE | 105.6 | 113.2 | 129.6 | 147.9 | 168 | 186.2 | 213.3 |
| 4 - CHAINSTAY | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| 5 - BB HEIGHT | 267 | 267 | 267 | 269 | 269 | 269 | 269 |
| 6 - BB DROP | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| 7 - WHEELBASE | 971.9 | 976 | 980 | 981.17 | 991.39 | 1001.86 | 1015.7 |
| 8 - HEAD ANGLE | 71° | 71.5° | 72.2º | 72.8° | 73° | 73.2° | 73.2° |
| 9 - SEAT ANGLE | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| 10 - STANDOVER | 729 | 743 | 761 | 782 | 802 | 820 | 848 |
| 11 - REACH | 370.08 | 375.56 | 380 | 385 | 391.02 | 398 | 404 |
| 12 - STACK | 506.06 | 515 | 533 | 552 | 571.92 | 590 | 616 |
| 13 - FORK LENGTH | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| RAKE | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| HEIGHT (CM) | HEIGHT (IN) | SIZE (CM) |
|---|---|---|
| 155-160 | 61.1"-63.0" | 47 |
| 160-166 | 63.0"-65.4" | 49 |
| 167-172 | 65.7"-67.7" | 51 |
| 173-179 | 68.1"-70.5" | 53 |
| 180-185 | 70.9"-72.8" | 55 |
| 186-191 | 73.2"-75.2" | 57 |
| 192-207 | 75.6"-81.5" | 60 |
| SIZE (CM) | CRANK | STEM | HANDLEBAR |
|---|---|---|---|
| 47 | 170 | 80 | 380 |
| 49 | 170 | 90 | 400 |
| 51 | 170 | 90 | 400 |
| 53 | 170 | 100 | 420 |
| 55 | 172 | 100 | 420 |
| 57 | 172 | 110 | 440 |
| 60 | 175 | 120 | 440 |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, power meter compatible, Rear Thru-Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube. |
|---|---|
| Fork | Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru-axle 12x100mm, thread M12x2 P1, Speed release compatible dropout. |
| Wheels | FULCRUM Racing 400 DB |
| Axles |
Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Crankset | SRAM Rival AXS Powermeter Dub 35x48T |
| Shifters | SRAM Rival eTap AXS |
| Front Derailleur | SRAM Rival eTap AXS |
| Rear Derailleur | SRAM Rival eTap AXS |
| Cassette/Freewheel | SRAM XG-1250 10-30T 12-Speed |
| Chain | SRAM Rival 12-Speed |
| Brakes | SRAM Rival eTap AXS |
| Handlebars | OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole |
| Tape/Grips | Lizard Skins DSP 2.5 |
| Stem | OC RP10 Road Performance ICR, -8°, IFC02 Computer mount interface |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing |
| Seatpost | Orbea Orca OMX, SB0/25, w/Micro tilt adjustment |
| Saddle | Selle Italia SLR Boost SuperFlow L Manganese Rail |
| Pedals | Sold separately |
| Accessories & Extras | SRAM eTap Powerpack |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Red Wine/Raw Carbon / 47cm | 08434446918872 | M12747BS | M12747BS |
| Red Wine/Raw Carbon / 49cm | 08434446918919 | M12749BS | M12749BS |
| Red Wine/Raw Carbon / 51cm | 08434446918957 | M12751BS | M12751BS |
| Red Wine/Raw Carbon / 53cm | 08434446918995 | M12753BS | M12753BS |
| Red Wine/Raw Carbon / 55cm | 08434446919039 | M12755BS | 210000005644 |
| Red Wine/Raw Carbon / 57cm | 08434446919077 | M12757BS | 210000005658 |
| Red Wine/Raw Carbon / 60cm | 08434446919114 | M12760BS | M12760BS |
| Anthracite Glitter/Blue Carbon / 47cm | 08434446918865 | M12747BR | M12747BR |
| Anthracite Glitter/Blue Carbon / 49cm | 08434446918902 | M12749BR | M12749BR |
| Anthracite Glitter/Blue Carbon / 51cm | 08434446918940 | M12751BR | M12751BR |
| Anthracite Glitter/Blue Carbon / 53cm | 08434446918988 | M12753BR | 210000008185 |
| Anthracite Glitter/Blue Carbon / 55cm | 08434446919022 | M12755BR | 210000006747 |
| Anthracite Glitter/Blue Carbon / 57cm | 08434446919060 | M12757BR | M12757BR |
| Anthracite Glitter/Blue Carbon / 60cm | 08434446919107 | M12760BR | M12760BR |
| Chic White/Black / 47cm | 08434446918889 | M12747BZ | 210000006237 |
| Chic White/Black / 49cm | 08434446918926 | M12749BZ | 210000006172 |
| Chic White/Black / 51cm | 08434446918964 | M12751BZ | 210000005615 |
| Chic White/Black / 53cm | 08434446919008 | M12753BZ | M12753BZ |
| Chic White/Black / 55cm | 08434446919046 | M12755BZ | M12755BZ |
| Chic White/Black / 57cm | 08434446919084 | M12757BZ | M12757BZ |
| Chic White/Black / 60cm | 08434446919121 | M12760BZ | M12760BZ |
