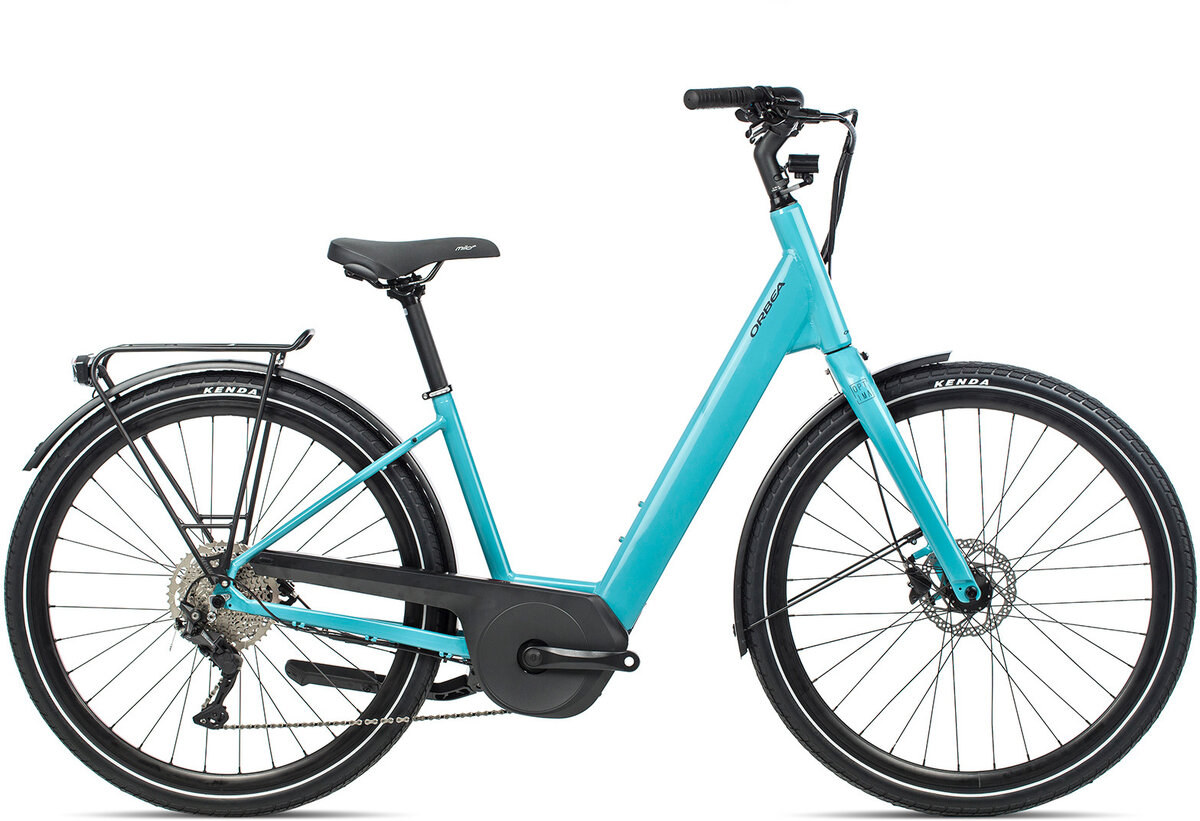

Orbea Optima E40
$1,199.99
$4,099.00
Details
IT'S ALL ABOUT BALANCE.
Optima is an apparently "normal" bicycle, but both the architecture and the ergonomics of the new Optima are innovative. It is a bike designed to be used as an electric bicycle from the conceptual design phase. This has meant revamping the product to the point that even its architecture changed.
VERSATILITY
- Easy Access
- Balanced City Geometry
- Comfortable Grips and Saddles
- Weatherproof
- Wide Gear Ratio
- Lightweight Alloy Frame
- Big Tires
URBAN ESSENCE
- Lights, Front and Rear
- Frame Lock
- Fenders + Chainguard
- Kickstand
- Orbea Lifetime Warranty
| Size | Small | Medium | Large |
|---|---|---|---|
| 1 - SEAT TUBE (C-T) (mm) | 405 | 450 | 500 |
| 2 - TOP TUBE (EFF) (mm) | 625 | 648 | 693 |
| 3 - HEAD TUBE (mm) | 190 | 240 | 270 |
| 4 - CHAINSTAY (mm) | 510 | 510 | 510 |
| 5 - BB HEIGHT (mm) | 272.5 | 272.5 | 272.5 |
| 6 - BB DROP (mm) | 95 | 95 | 95 |
| 7 - WHEELBASE (mm) | 1163 | 1187 | 1233 |
| 8 - HEAD ANGLE | 70° | 70° | 70° |
| 9 - SEAT ANGLE | 72° | 72° | 72° |
| 11 - REACH (mm) | 397 | 405 | 440 |
| 12 - STACK (mm) | 662 | 709 | 737 |
| 13 - FORK LENGTH (mm) | 433 | 433 | 433 |
| RAKE (mm) | 55 | 55 | 55 |
| SIZE | CRANK | STEM | HANDLEBAR |
|---|---|---|---|
| Small | 152 | 60 | 640 |
| Medium | 152 | 60 | 640 |
| Large | 152 | 60 | 640 |
| HEIGHT ( CM ) | HEIGHT ( IN ) | SIZE |
|---|---|---|
| 150-165 | 59.1"-65.0" | Small |
| 165-180 | 65.0"-70.9" | Medium |
| 180-200 | 70.9"-78.7" | Large |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery |
|---|---|
| Fork | Optima 400mm Alloy Post mount |
| Wheels | Ready GR 29-700 C |
| Tires | Kenda 1172 700x50c |
| Crankset | Orbea Alloy 42t |
| Shifters | Shimano Deore M4100 |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
| Cassette/Freewheel | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC X10 |
| Brakes | Shimano MT200 Hydraulic Disc |
| Handlebars | Orbea City Riser Alu 640mm |
| Stem | Orbea TDS-D617 |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Seatpost | Alloy 31.6x400mm Offset 0 |
| Saddle | Selle Royal Milo Plus DR |
| Pedals | VP-857 Black |
| Accessories & Extras | QUICK STAND: Ursus Power single adjust central, MUDGUARD SKS EDGE: Alloy C56R, REAR CARRIER: Orbea Optima hidden stays, REAR LIGHT: Joss Spanninga Lineo XDS Dinamo, FRONT LIGHT: Lezyne Ebike Power STVZO Pro E115 inverted position 310 lumens |
| Motor | Ebikemotion X35 Plus 20mph |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Controller/Display | OC monochrome ANT+ LEV |
| Charger | Ebikemotion X35 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Metallic Dark Red / Small | 08434446965777 | M60417XW | OPTIMAE40SR |
| Metallic Dark Red / Medium | 08434446965807 | M60418XW | OPTIMAE40MR |
| Metallic Dark Red / Large | 08434446965838 | M60420XW | OPTIMAE40LR |
| Blue / Small | 08434446965784 | M60417XX | OPTIMAE40SB |
| Blue / Medium | 08434446965814 | M60418XX | OPTIMAE40MB |
| Blue / Large | 08434446965845 | M60420XX | OPTIMAE40LB |
| Night Black / Small | 08434446965760 | M60417XV | OPTIMAE40SN |
| Night Black / Medium | 08434446965791 | M60418XV | OPTIMAE40MN |
| Night Black / Large | 08434446965821 | M60420XV | OPTIMAE40LN |
